Otto

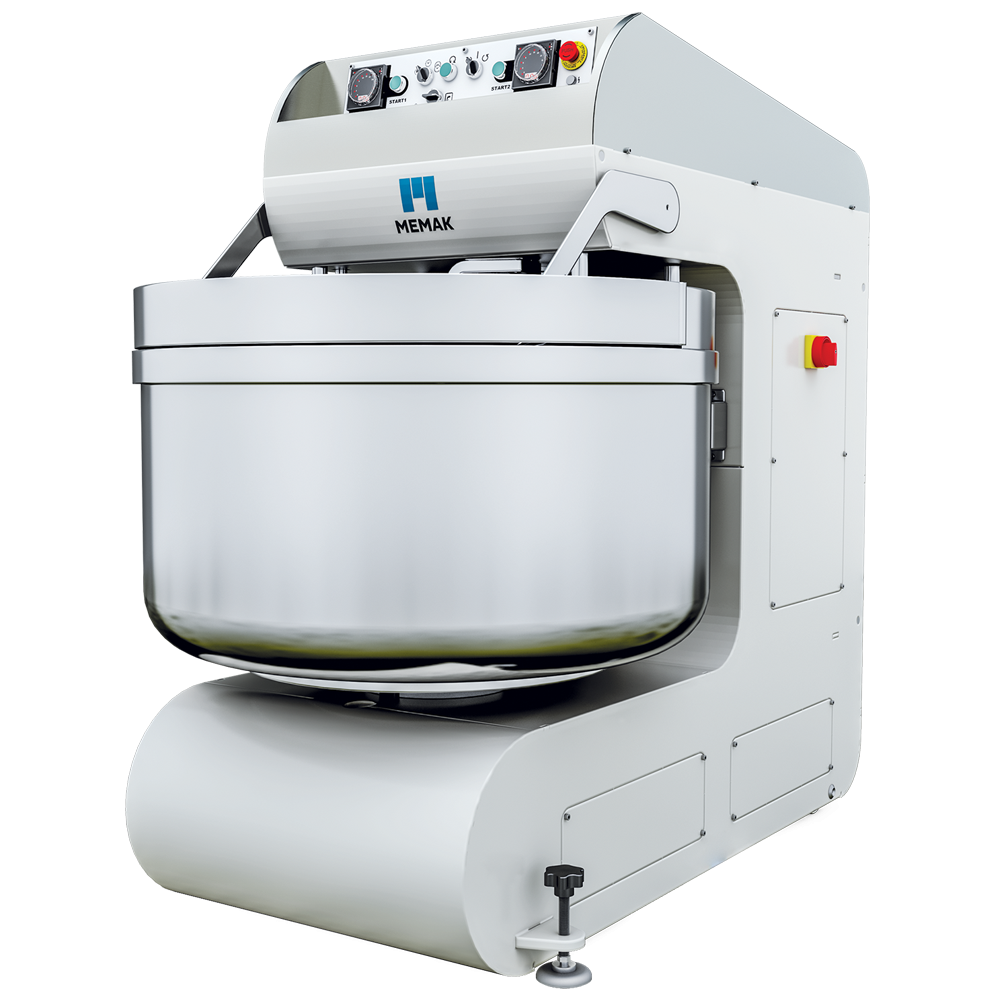

FIXED BOWL AUTOMATIC SPIRAL MIXER

Standard Features
• Spiral mixer with fixed bowl with two motors,one for the bowl-one for the spiral hook
• Two speed, two electronik timer
• Two directional bowl rotation
• Stainless steel bowl-spiral hook and central bar
• Stainless steel bowl guard and motor protection cover
• Piston to support the bowl guard
• Poly-V belt transmission system
• Automatic valve for water inlet

Accesories
• Digital dought temperature measurement
• Automatic water liter adjustment



Get Offer Product Brochure User Guide

Specifications




OTTO 40
OTTO 100
OTTO 200
OTTO 250
Dough Capacity
kg40100200250
Flour Capacity
kg2562.5125150
Bowl Volume
lt70157298368
Spiral Motor Speed I / II
kw1,5 / 3
3,5 / 5,5
5/87,5 / 11
Bowl Motor
kw0.550.55
1.51.5
Bowl DimensionØxh
50x30
70x41
90x47
90x47
Water Supply
inch1/2”
1/2”
1/2”
1/2”
Weight
kg3505508301150
Electric Connection

380V/50-60 hz/3 phase
380V/50-60 hz/3 phase
380V/50-60 hz/3 phase
380V/50-60 hz/3 phase
Exterior Dimensions
cm

W: 54
D: 100
H:112

W: 73
D: 137
H:134

W: 93
D: 150
H:141

W: 107
D: 160
H:150
